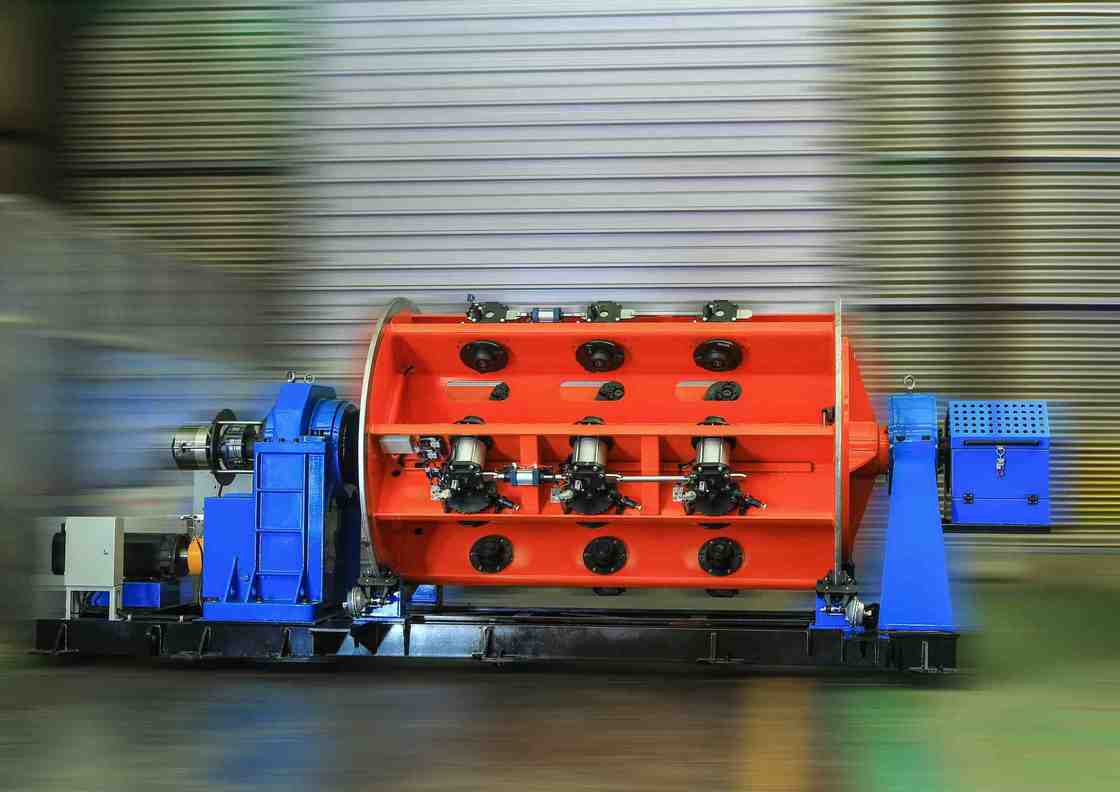

JLK Series Rigid Frame Stranding Machine Integrated with Side Automatic Loading Mechanism

JLK Series Rigid Frame Stranding Machine Integrated with Side Automatic Loading Mechanism

1. Application

It is mainly used for the stranding and compaction of copper and aluminum sector conductors, the stranding, drawing and compaction of round and special-shaped conductors, as well as the stranding of steel-cored aluminum conductors.

2. Main components

2.1. Φ1600 Pay-off stand

2.2. 12B,18B strander

2.3. Wire assembly and sector compacting device

2.4. Smart meter counter

2.5. Ø1600 double initiative capstan

2.6. Ø2500 take-up stand with traverse

2.7. Transmission system

2.8. Electric control system

2.9. Safety protection device (electric safety cover)

2.10. Ground shaft safety cover

2.11. Reel loading spreader

2.12. Pneumatic wrench

3. Main features

3.1. The wire breaking alarming signal is transited by singe-bobbin pulse, which can get 100% if any wire break.

3.2. Adopt cabinet type touch screen operation desk , which is convenient for operation and beautiful in form.

3.3. Rectangular square tube is used for the reinforcement of the main strander to avoid the jitter of the single board.

3.4. The new belt tensioner adopts high wear-resistant friction belt, which makes the adjustment more convenient and the service life longer.

3.5. The cables and air circuits inside the machine are hidden in the square tube of the base to avoid damage and disorder.

3.6. Reinforcement is added to the front support of the main machine to increase stability. The wire die base is connected to the front support of the main machine, which has stronger integration and better mechanical rigidity.

3.7. The front and rear shaft heads of the main machine are made of integrated steel castings to avoid cracking caused by welding.

3.8. The braking area of the main machine is increased to improve the braking performance.

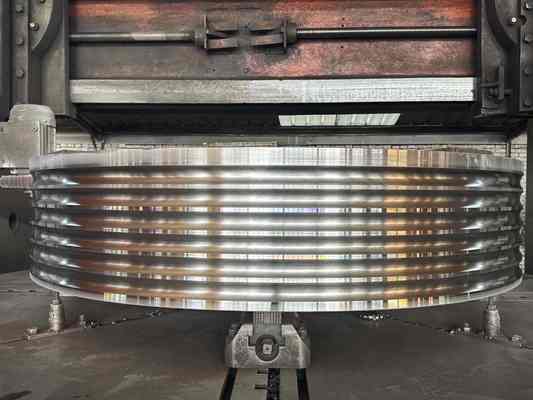

3.9. Surface polishing of capstan wheel.

4.Main technical parameters

5.Photos

6.Packing photo

7.Our factory and introduction

Hebei Baohong Electrical Machinery Co., Ltd. was founded on August 1, 2006. Located in the industrial zone of Shawa Township, Hebei City,which lies at the triangular center of Beijing, Tianjin and Shijiazhuang, the company enjoys convenient transportation and abundant iron and steel resources. Starting with the production of stranding machine series products, it has undergone 18 years of development.

By fully relying on talentadvantages and technical strength, the company continuously researches and develops new technologies and processes, achieving steady growth and gradually evolving into a comprehensive economic entity with advanced manufacturing technology, strong production capacity, and sales networks covering the whole country and overseas.

The company covers a factory area of 30,000 square meters, with more than 100 employees, including 12 mechanical and electrical engineers,and its processing equipment totals more than 60 million yuan. Currently, through the introduction of large-scale processing equipment and the research, development and improvement of processes, the company has become the only manufacturer in China that produces JLK cage stranding machine series units on an assembly line.
